1 Router configurationΒΆ

To allow remote access to the render farm from outside the local network, the following ports must be opened on your local router.

  • TCPIP 17388: HTTP non-secure connection to Web/JSON interface

  • TCPIP 17389: HTTPS secure connection to Web/JSON interface

  • TCPIP 17392: Cloud Transport Protocol (CUI) OpenSSL AES-256.

  • TCPIP 17393: Cloud User Interface (CUI) OpenSSL AES-256.

These ports must be port-forward (routed) to the SquidNet master on your render farm.

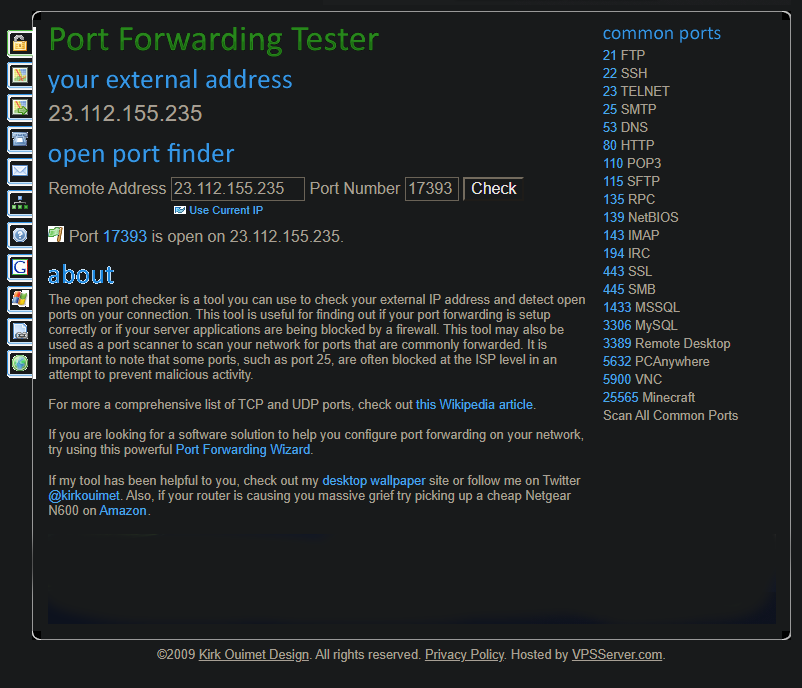

Make sure these ports are open on your firewall before attempting to use. You can check your port WAN status using this port tester.

_images/port_tester.png

Important

In order to test the router ports, the SquidNet master service must be started.

Last Updated on 2021-12-15
